25-pin I/O Port

[ghamian]

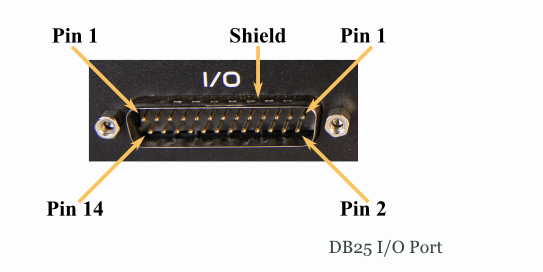

I am confused by the I/O port diagram in the manual. It is indicating 2 pins to be Pin 1. Is there an image with the complete Pin assignment? FRom what I know a standard Db25 I/O port looks more like the 2nd image where the upper right pin is 13 and not 1 and lower right pin is 25 not 2.

[Doug]

Sorry,

It looks like the right side of the image got cut off in our manual. From left to right, the top row of pins is 1 - 13 and the bottom row is pins 14 - 25.

Thanks for pointing this out. We will correct the manual.

Doug

[Doug]

The manual has been corrected.

[ghamian]

Much thanks!!!~
